Ribbon NPT-1100
NPT 1100 Overview

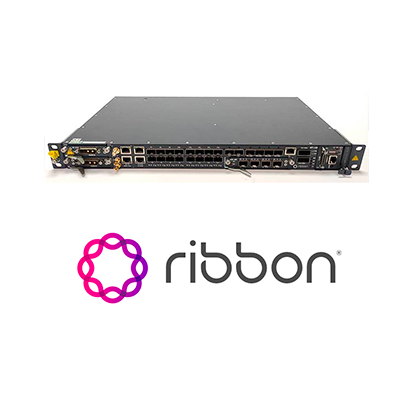

The NPT 1100 has 300G switching capacity and a port fan-out supporting 582G in a 1RU form factor, it is ideal for Multi-Service applications. It supports Dual stack IP/MPLS and MPLS-TP, including a comprehensive and scalable set of Layer 2 and Layer 3 VPN services. With such a rich and robust feature-set, the Neptune 1100 is well suited for a wide variety of applications and networking scenarios. These include CES/CEP for TDM migration, 3G/4G and 5G mobile backhaul, business services, and residential voice, video, and data.
Neptune 1100 Key Product Highlights
• Multiservice 5G xHaul Access router
• Multi-access Edge supporting Ethernet,XGS-PON, EPON, TDM with CES
• 1RU small form factor with a 263mm depth
• Environmentally hardened, suitable for deployments in indoor or outdoor sealed cabinets
• Low-latency forwarding, Class C compliant
• Versatile Ethernet interface options: 1G/10G/25G and 100G
• Low-latency forwarding, Class C compliant
• 100G ZR/ZR+ optics support
• Precise frequency and phase/time synchronization using the latest industry standards
• Rich quality-of-service capabilities for different SLAs
• Security-Trust Anchor module infrastructure, secure boot, image signing, run-time defense
• Open NE for 3rd Party Management • Advanced Management Capabilities provided by Muse Software
Key Neptune 1100 Product Specifications
Platform
|
Description |
Specification |
|
CPU |
• 8-cores PPC |
|
Memory |
• 8G DRAM |
|
Storage |
• 16GB eMMC |
|
Interfaces |
• 2x100G • 8x25G • 26x10G • 30xGE ports |
|
Performance |
• Switch capacity Up to 300 Gbps |
|
Power supplies |
• 2 hot swappable with 1+1 redundancy |
|
Cooling |
• 1 Fan, • Airflow – right to left |
|
Timing |
• SyncE with ESMC • 1588v2 • GNSS receiver • External timing 1PPS and TOD • Internal stratum 3E clock (holdover state) • Primary and secondary sources (supports SSM bits) • ACR, DCR • Loop timing on SAToP, TDM bits (T3/ T4), and SNTP • G.8262.1, G.8275.1 • G.8273.2 – class C |
|
Physical Specification |
• 1RU • Dimension: 465 mm (W) x 263 mm (D) x 44mm (H) • Weight: 4.2kg |
Multi-access Edge Capabilities
|
Description |
Specification |
|
L2/L3 VPN Sevices |
• L2VPN - MEF 3.0 (IP-MPLS and MPLS-TP) • E-Line • E-LAN • E-Tree • E-Access • Ethernet Virtual Private Network (EVPN) • Virtual Private Wire Service (EVPN-VPWS, EVPN-ELINE) • Virtual Private LAN Services (EVPN-VPLS, EVPN-ELAN) • Anycast IRB with IPv4 and IPv6 support • Multihoming - Active-Active, Single-Flow-Active, Port-Active • PW Virtual Ethernet Segment • L3VPN • IPv4 VRF • 6VPE • IRB, PHT |
|
TDM Services |
• Circuit Emulation Services (CES) • SAToP • CESoPSN • CEP |
|
TDM Pluggables |
• E1/T1 • E3/DS3 • STM-1/OC-4 • STM-16/OC-48 |
|
TDM Interfaces |
• Max. Interfaces: • 32 x E1/T1 • 4 x STM-1/OC-3 • 1 x STM-4/OC-12 |
|
PON Pluggables |
• Smart SFP 10G XGS-PON - 10G SFP+ OLT Optics modules |
|
IP over DWDM |
• CWDM • DWDM • 100G coherent interfaces • ZR and Open ZR+ application • QSFP_DD for 100G |
Software features provided by the Neptune’s IP-Wave rNOS
|
Description |
Specification |
|
Layer 2 |
• Layer 2 forwarding and bridging • Bridge Domains (BD) • Flexible VLAN-Tagging • IEEE 802.1Q VLANs and Q-in-Q • Ethernet Link Aggregation Group (LAG) • Link Aggregation Control Protocol (LACP) 802.3ad • G.8032 • Spanning Tree Protocol • Jumbo frames on all ports |
|
Layer 3 |
• IPv4 and IPv6 unicast routing • Layer 3 interfaces: physical interfaces and logical interfaces (Units). • Virtual Routing and Forwarding (VRF) • Open Shortest Path First (OSPFv2, OSPFv3) • Intermediate System to Intermediate System (ISIS) • Multiprotocol Border Gateway Protocol (MP-BGP) • Equal-Cost Multipath (ECMP) • Bidirectional Forwarding Detection (BFD), MH-BFD • Virtual Router Redundancy Protocol (VRRP) • Integrated Routing Bridging (IRB), Anycast IRB • Pseudowire Headend Termination (PHT) |
|
MPLS |
• Label switching (LER, LSR) • Label Distribution Protocol (LDP) • BGP Labeled Unicast (BGP-LU) • MPLS-TP • MPLS Traffic Engineering with RSVP-TE, SR-TE • Point-to-point L2VPN – Static, T-LDP, EVPN-VPWS • Multipoint L2VPN – VPLS, EVPN • EVPN with Anycast IRB • 6VPE • IP Loop-Free Alternate (LFA) Fast Reroute (FRR) • RSVP-TE Fast Reroute (FRR) and Path-Protection |
|
Segment Routing (SR) |
• SR-MPLS • ISIS, OSPF, BGP extensions to segment routing • TI-LFA • Segment Routing Traffic Engineering (SR-TE, SR Policies) • PCE, PCC initiated SR Policies • Path Protection • TI-LFA Local Repair Protection • Anycast SID • Binding SID • SR, SR-TE OAM • Flexible Algorithm • BGP Color Extended Community |
|
Multicast |
• IPv4 and IPv6 Multicast Routing • PIM-SM, PIM-SSM, PIM-ASM • IGPv3, MLDv2 • MSDP • Anycast RP • BGP IPv4 Multicast |
|
Quality of Service (QoS) |
• Class-based 3-level Hierarchical QoS • Virtual Output Queueing (VOQ) • Policing, Shaping • Multi-level priority queuing • Classification based on L2/L3/L4 fields • Remarking • Weighted Random Early Detection (WRED) • Deep packet buffer |
|
OAM |
• Ethernet OAM • IEEE802.3ah • IEEE802.1ag • ITU-T Y.1731 PM • IP OAM • BFD • Ping • Trace-route • TWAMP • MPLS-TP OAM - G8113.2, RFC5860, BFD • MPLS OAM - Ping/Traceroute MPLS • RFC 2544 Generator, Y.1564 • LLDP • DHCP Relay • Steaming Telemetry • sFlow • Link Delay-Measurement |
| Security |
• Control-plane and management plane protection • Authentication, Authorization, and Accounting (AAA) • RADIUS • Terminal Access Controller Access-Control System Plus (TACACS+) • Secure Shell (SSH) • Layer 2 and Layer 3 ingress Firewall filters (ACL) • Unicast Reverse Path Forwarding (Unicast RPF) • IEEE802.1x |
|
Manageability |
• CLI • LCT • SNMP MIB • NETCONF/gRPC - XML, JSON, GPB • YANG models - OpenConfig, IETF • Muse software suite (SDN orchestration and control) • LightSOFT® NMS • Zero-Touch Provisioning (ZTP) |
Environmental
|
Description |
Specification |
|
Operating Environment and Altitude |
-400C to +650C (-40°F to 149°F) |
|
Operating Humidity |
5% to 95% |
|
Altitude |
0 to 4000m |
|
Acoustics |
NEBS GR-63-CORE |
|
Power over Ethernet (PoE+) |
Up to 30W |
|
Power Input |
-40 VDC to -72 VDC, 110 VAC to 230 VAC |
|
Power Dissipation |
Typical: 100W |
Standards Compliance
|
Description |
Specification |
|
Regulatory |
Products should comply with CE markings according to directives 2014/30/EC and 2014/35/EC |
|
NEBS |
Designed to meet GR-63, GR-1089 and GR-3160 |
|
Safety |
• IEC 62368-1 • UL 62368-1 • IEC 60825-1 for lasers • IEC 60825-2 for lasers |
|
EMS Standards |
• FCC CFR 47 Part 15 Subpart B ANSI C63.4 • IEC 61850-3 • IEEE 1613 • ETSI EN 50121-4 • IEC 62236-4 • FTZ 1TR9 |
|
EMC Immunity |
• ETSI EN 300 386 • IEC 61000-4 series |
|
ETSI |
• ETSI EN 300 019 - Storage: Class 1.1, Transportation: Class 2.3, In-Use/Operational: Class 3.1 • QM 333 • ETSI EN 300 753 |
|
RoHS |
Compliance per EU RoHS, RoHS 2 directive 2011/65/EU and amendment 2015/863/EU directives. |
