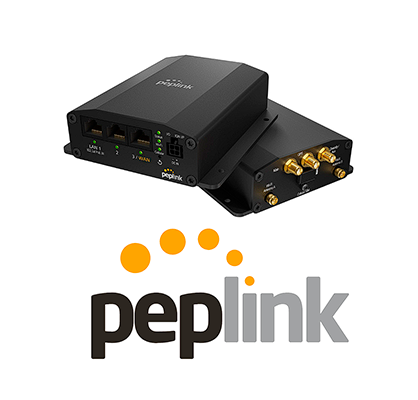

PepLink PEPLink BR1 Mini
Constant Connectivity
With the BR1 Mini, there is always a way to connect. Use a combination of cellular, Ethernet#, and Wi-Fi WAN# to provide users with constant connectivity
Reliable Hotspot
When working from home, reliable connectivity is critical. The BR1 Mini provides this seamlessly: no matter what WAN connection the BR1 Mini uses, the user experience remains consistent.
OOBM Support
Create a modern out-of-band network to manage all your equipment. Give yourself console and Ethernet connectivity to all of your devices. Display your devices console interface over the cloud via InControl so you can securely manage from anywhere without the usual headaches.
Deploy Anywhere
The BR1 Mini Core is designed to function where
other routers can’t. It is certified for vibration resistance and rolling stock (E Mark, EN 61373, EN
50155, EN 61000). It accepts multiple power inputs
and a wide voltage range. Finally, it has an optional
mount for Class 1 Div 2 support, and can function in
extreme heat and cold.
Specifications
| WAN Interface | 1x 10/100M Ethernet Port # 1x Embedded LTE Modem with Redundant SIM Slot |
| LAN Interface | 1x 10/100M Ethernet Port |
| Wi-Fi Interface | 802.11b/g/n Wi-Fi WAN # or AP |
| Drop-in Mode | |
| Number of PepVPN SpeedFusion Peers | 2/5 * |
| Router Throughput | 100 Mbps |
| Number of IPsec Tunnels | 5 |
| Recommended Users | 60 |
| Downlink/Uplink Datarate | 150Mbps/50Mbps (CAT 4) 300Mbps/50Mbps (CAT 6) |
| Cellular and GPS Antenna Connector | 2x SMA Antenna Connectors 1x SMA GPS Antenna Connector 1x Wi-Fi Connector |
| Power Input | DC Jack/Terminal Block: 12V – 28V DC Passive PoE Input (WAN Port, 12V – 28V DC) |
| Power Consumption | 1.8W (nominal), 12W (max.) |
| Dimensions | 4.6 x 4.2 x 1.4 inches 117 x 107 x 35 mm |
| Weight | 0.54 pound, 244 grams |
| Operating Temperature | -40° – 149°F, -40° – 65°C |
| Humidity | 15% – 95% (non-condensing) |
| Certifications | FCC, CE, IC, RoHS, E-Mark, EN 61373: Shock and Vibration Resistance, EN 50155: Railway Applications - Electronic Equipment used on Rolling Stock, EN 61000: Electromagnetic Compatibility |
| Warranty | 1-Year Limited Warranty |
| Package Content | MAX BR1 MINI, 12V2A Power Supply (ACW-601), 1x GPS Antenna (ACW-232), 1x Wi-Fi 2.4G Antenna (ACW-304), 2x LTE Antenna (ACW-813), 2pin Terminal Block Connector |
