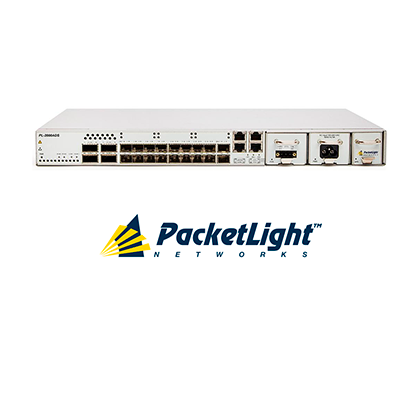

Packet Light PL-2000ADS
Features Overview
· Supports multiple, user-configurable, operation modes: muxponder, transponder, and ADM
· Supported clients:
o 10Gb/40Gb/100Gb Ethernet
o 8G/16G/32G Fibre Channel
o 12G-SDI
o STM-64/OC-192
o OTU2/OTU2e, OTU4
· Standards-based forward error correction (FEC) for short haul applications
· Dual pluggable QSFP28 interfaces for uplink and client
· Layer-1 GCM-AES-256 based encryption
· Low latency muxponder/transponder/ADM
· Comprehensive line and service performance monitoring
· Remote management with in-band or out-of-band optical supervisory channel (OSC)
· Supports standard MSA pluggable:
o SFP+ (8G/10G/16G/32G FC client)
o SFP28 (32G FC client)
o QSFP+ (40GbE client)
o QSFP28 (100GbE client)
o QSFP28 (100GbE uplink)
· Dual AC or DC pluggable power supply and pluggable fan unit
Technical Specifications
| Product Configurations | Muxponder: Aggregation of up to
20 multi-service, multi-rate, multi-protocol client interfaces: Ethernet, Fibre Channel, SONET/SDH, and OTN into 2xOTU4 uplinks Dual 100G Transponder: 2x100GbE mapped into 2xOTU4 uplinks 100G Transponder and 10x10G Muxponder: 100GbE mapped into one OTU4 uplink and up to 10 multi-service 10GbE clients aggregated into a second OTU4 uplink |
| Uplink Characteristics | Bit Rate: 112Gbps (OTU4) Optical Interface: 2xQSFP28 FEC Support: Standard ITU-T G.709 GFEC Optical Reach: Up to 40km with ER4 Optical Output Power: 2dBm to -2dBm Optical Monitoring: Tx and Rx power |
| Client Interfaces | Service type: 10GbE, 40GbE,
100GbE, 8G/16G/32G FC, 12G-SDI, STM-64/OC192, OTU2, OTU2e, OTU3, OTU4 Optical Interface: n SFP+: LR (1310nm), SR (850nm), ER (1550nm), ZR (1550nm), C/DWDM n SFP28: LR (1310nm), SR (850nm) n QSFP+: LR4 (1310nm), ER4 (1310nm), SR4 (850nm), LR PSM n QSFP28: LR4 (1310nm), ER4 (1310nm), SR4 (850nm), CWDM4 (CWDM) Management: n Web browser over HTTP/HTTPS, n PacketLight LightWatchTM NMS/EMS, or third party NMS over SNMP n REST, NETCONF n CLI over RS-232 or CLI over Telnet/SSH OAM: n Facility loopback (client and line interfaces), PRBS, event log, external alarms (input and output) n Automatic laser shut-down (ALS) |
| Network Management | Management Ports: n 2xRJ-45 LAN port 10/100MBase-T n 2xSFP MNG ports 100/1000MBase-X n RJ-45 serial port n RJ-45 external alarm port n OTN in-band GCC channel Management Protocols: SNMP, v1/ v2/v3 HTTP, HTTPS, Telnet, SSH, Syslog, RADIUS, TACACS+, SNTP, TFTP & FTP Performance Monitoring: n Layer-1 PM for all services n Layer-2 PM for Ethernet n OTN PM for uplinks n Optical power Rx levels for all optical ports n Egress PM for all services Visual Indicators: LED status indicators for: client and line ports, Management and LAN ports, system Critical/Major/ Minor and Power Supply Software Upgrade: Hitless traffic – dual image |
| Power Supply | AC/DC: 100 to 240 VAC, 50/60
Hz, -36 to -60 VDC, 170W max PSU Redundancy: Single/dual feeding, hot swappable Cooling Unit: Hot swappable fan unit |
| Environmental | Operating Temperature: -5ºC to 50ºC (+23ºF to +122ºF) operational Humidity: 5% to 85% RH |
| Physical Dimensions | 1U: n 1.77” (H) x 17.32” (W) x 11.22” (D) n 45mm (H) x 440mm (W) x 285mm (D) Weight: 8.5kg / 18.75lb (max) Mounting: 19”, ETSI, 23” |
| Encryption | Functionality: n Full speed, transparent Layer-1 encryption for selected clients or for the OTU4 uplinks n Supports quantum key distribution Algorithms: n Encryption/decryption: GCM-AES-256 n Key exchange: ECC Cofactor DiffieHellman with P-384 curve n Message digest: SHA-384 Authentication: n Role-based user/password Compliance: n FIPS 140-2 certified n Common Criteria EAL2 certified n CNSA Top Secret Suite B 2015 compliant Note: For specific countries, models that include Layer-1 GCM-AES-256 based encryption will be marked with the suffix C. |
| Approvals & Standards | n CE, FCC, RoHS, REACH n NEBS ready |
Recommended applications:
· Last mile access/aggregation CPE for 10/40/100GbE managed service
· High capacity, short haul enterprise and campus networks
· Dynamic add/drop of services in ring and linear add/ drop topologies
· Feeder solution for third party OTU4 transponder card
· Up to 200G Layer-1 encryption solution for 10/40/100GbE services
· High bandwidth connectivity for data center and cloud computing
