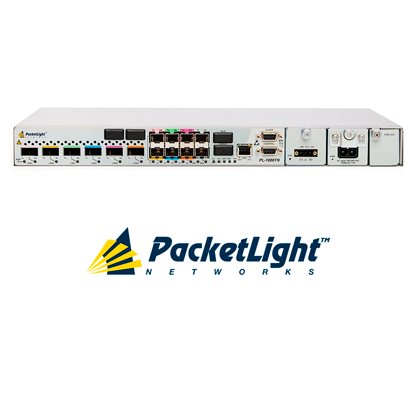

Packet Light PL-1000TN
Features Overview
6 independent ITU G.Sup43 standard-based multi-rate 8/10G OTN transponders,
Supported clients:
- 10Gb/40Gb Ethernet
- 8G/10G Fibre Channel (FC)
- STM-64/OC-192
- OTU2/2e
Three FEC types: ITU G.709 GFEC, G.975.1 EFEC I.4 and UFEC I.7 for enhanced performance,
Supports full C-band tunable DWDM on line side optics,
Supports multi-rate client interfaces over a common OTN infrastructure,
1+1 facility and optical switch line protection,
Comprehensive performance monitoring and full OTN managed layer
Optional integrated EDFAs, DCM, mux/demux and optical switch modules
Remote management with in-band GCC or out-of-band optical supervisory channel (OSC)
Cost-effective 1U platform with low power consumption, ideal for customer located equipment (CLE)
Supports standard MSA pluggable modules:
- SFP+ (client)
- XFP (uplink)
Dual AC or DC pluggable power supply and pluggable fan unit
Operates on single or dual fiber networks
| System | Transport Network Medium: Access/ metro
CWDM, DWDM or dark fiber / long distance optical fiber networks / OTN
backbone networks Protection: 1+1 facility |
| Product Configurations | Transparent OTU2 Transponder: |
| Optical Amplifier | Output Power: 14, 17, 20 or 23dBm Input Power: -36dBm up to 16dBm Gain: 8dB to 22dB Operating Modes: - Automatic Gain Control (AGC) - Automatic Power Control (APC) Eye Safety: Automatic laser power reduction upon fiber cut or disconnection |
| Mux/Demux | Channels: 4/8 CWDM or DWDM channels Spacing: 50/100GHz (for DWDM) |
| Line (Uplink) | Protocols: - OTU2 (10.709) - OTU2e (11.095) as per G.Sup43 - OTU2f (11.317) FEC Types: G.709 GFEC (RS) , G.975.1 EFEC I.4 , G.975.1 UFEC I.7 Optical Interface: - Up to 6 pluggable XFP transceivers - DWDM, tunable DWDM - CWDM |
| Client Service | Client Protocols: - 10G/40G LAN (10.3125G/4x10.3125G) - 8G/10G FC (8.5G/10.518) STM-64/OC-192 (9.953) - OTU2 Optical Interface: - Up to 6 pluggable SFP+ transceivers - 850nm multimode - 1310nm single mode |
| Network Management | Management Ports: - RJ-45 LAN port 10/100MBase-T - 2xSFP MNG ports 100/1000MBase-X - RJ-45 serial port - RJ-45 external alarm port - OTN in-band GCC channel Management Protocols: - SNMP, HTTP, HTTPS, CLI over RS-232 or CLI over Telnet/SSH, Syslog, RADIUS, TACACS+, SNTP, TFTP & FTP NMS: - PacketLight LightWatchTM NMS/EMS, or third party NMS over SNMP OAM: - Facility loopback (client and line interfaces), PRBS, event log, alarms - Automatic laser shut-down (ALS) Performance Monitoring: Layer-1 PM for all services Layer-2 PM for Ethernet OTN PM for uplinks Optical power Rx levels for all optical ports Visual Indicators: LED status indicators for: client and line ports, Management and LAN ports, amplifier/s, system Critical/Major/Minor and Power Supply Software Upgrade: Hitless traffic – dual image |
| Power Supply | AC/DC: 90 to 246 VAC, 50/60 Hz, -36 to -60 VDC, 70W max PSU Redundancy: Single/dual feeding, hot swappable Cooling Unit: Hot swappable fan unit |
| Environmental | Operating Temperature: -5ºC to 50ºC (+23ºF to +122ºF) Operational Humidity: 5% to 85% RH |
| Physical Dimensions | 1U: - 1.77” (H) x 17.32” (W) x 9.05” (D) - 45mm (H) x 440mm (W) x 230mm (D) Weight: 5.5kg / 12.1lb (max) Mounting: 19”, ETSI and 23” |
| Configuration | License-based: 4, 6 transponders |
| Approvals & Standards | - CE, FCC, RoHS, REACH n - NEBS ready |
Recommended applications:
- Building efficient DWDM OTN transport solutions for enterprises over common OTN long distance optical network
- Building a robust packet optical network infrastructure
- Multi-rate OTN transpodner for ROADM-based applications
- CPE device for end-to-end managed services over carrier backbone
- Upgrading SONET/SDH backbones to OTN backbones Q OTU2e OTN regenerator
