Mikrotik with IPSEC RB3011UiAS-RM
Overview
The RB3011 is a new multi port device, our first to be running an ARM architecture CPU for higher
performance than ever before. The RB3011 has ten Gigabit ports divided in two switch groups, an
SFP cage and for the first time a Superspeed full size USB 3.0 port, for adding storage or an external
3G/4G modem.

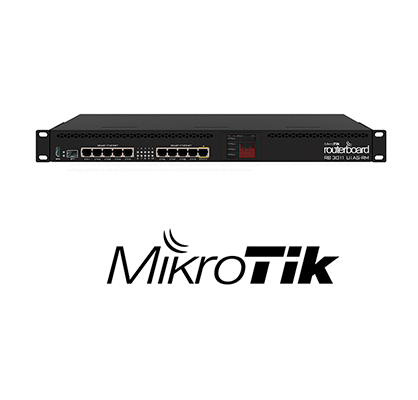

RB3011UiAS-RM
Unit comes with 1U rackmount enclosure, a touchscreen LCD panel, a serial console port and
PoE output functionality on the last Ethernet port.
Specifications
| Product code | RB3011UiAS-RM |
| CPU nominal frequency | 1.4 GHz |
| CPU core count | 2 |
| Size of RAM | 1 GB |
| 10/100/1000 Ethernet ports | 10 |
| Switch chip model | QCA8337-AL3C-R |
| Power Jack | 1 |
| PoE in | Yes (passive only) |
| PoE out | Yes (port 10) |
| Supported input voltage | 10 V - 30 V |
| Voltage Monitor | Yes |
| PCB temperature monitor | Yes |
| Dimensions | 443x92x44mm |
| License level | 5 |
| Operating System | RouterOS |
| CPU | IPQ-8064 |
| Max Power consumption | 10 W |
| SFP port | 1 |
| USB slot type | USB 3.0 type A |
| Number of USB ports | 1 |
| Serial port | RJ45 |
Performance test results
| RB3011UiAS |
All port test
| RouterOS v6.30rc23 |
Mode | Configuration | 1518 Byte | 512 byte | 64 byte | |||
| Mbps | kpps | Mbps | kpps | Mbps | kpps | ||
|
Bridging
|
none (fast path)
|
3,946.8
|
325.0
|
3,849.4
|
939.8
|
783.5
|
1,530.2
|
|
Bridging
|
25 bridge filter rules
|
3,946.8
|
325.0
|
1,573.7
|
384.2
|
178.5
|
348.6
|
|
Routing
|
none (fast path)
|
3,946.8
|
325.0
|
3,849.4
|
939.8
|
736.1
|
1,437.6
|
|
Routing
|
25 simple queues
|
3,946.8
|
325.0
|
1,718.7
|
419.6
|
214.9
|
419.7
|
|
Routing
|
25 ip filter rules
|
2,453.1
|
202.0
|
836.0
|
204.1
|
96.5
|
188.4
|
