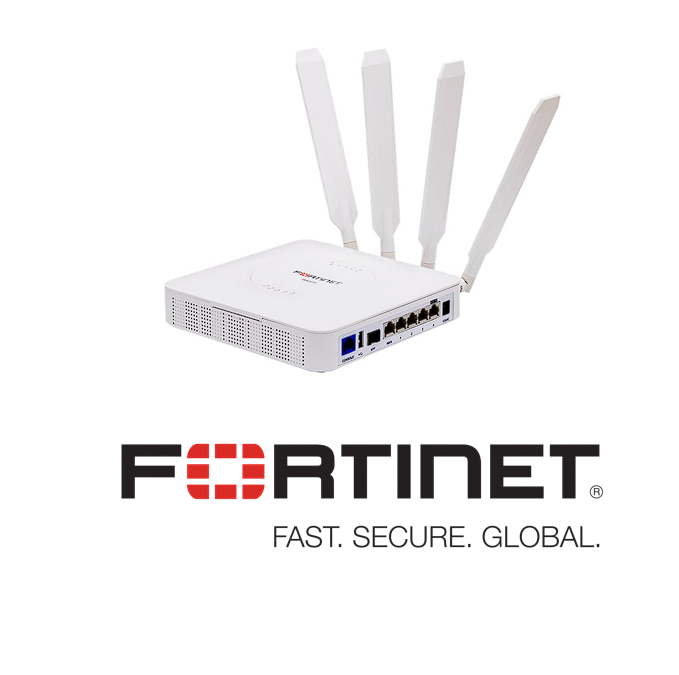

Fortinet LTE FEX-101F-EA Forti Extender
Extend, Ensure, and Secure Your Network
FortiExtender offers scalable, cost-effective, and resilient 5G, LTE, and Ethernet solutions. Driven by Fortinet’s unique approach of Secure Networking, FortiExtender allows organizations business continuity, improved network availability while securing connectivity with wired broadband and cellular networks.
From secure point of sale (POS) systems to vehicle fleet
communication, FortiExtender provides reliable broadband
access to the internet and extends the value of the Fortinet
Security Fabric to support fluid business operations
dependent on remote device connectivity.
Features
Superior Management, Security, and Control
FortiExtenders are a true plug-and-play device. Once connected to the FortiGate, they
appear as a regular network interface in FortiOS management. IT administrators can manage
the connection as well as implement complete UTM security and control, just like any other
FortiGate interface. In addition, FortiOS will display data quota usage on the wireless WAN
interface, providing complete visibility of the connection to ensure costly carrier data limits are
not exceeded. The superior management, security, and control of the FortiExtender ultimately
reduces IT costs while extending, ensuring, and securing the network
Highlights
Improves user experience though optimal 5G and LTE wireless signal
Provides secure network failover with out of band management (OBM), dual SIM, and dual Modem capabilities
Integrates with Fortinet Secure SD-WAN for ease of deployment, management, and security Offers dynamic, flexible edge connectivity—switch links among ISPs based on data consumption, schedules, or ad hoc
Enables network access for remote sites and branches located beyond fixed broadband
Accelerates cloud connectivity for any user with flexible on-ramp paths to SaaS/IaaS
Reduces overall WAN TCO with FortiGate Network Security Platform integration
Cloud-based management empowers businesses with globally distributed locations
Four LAN ports and routing
capabilities enable remote
connectivity and networking
| Hardware and System | FEX-101F-AM | FEX-101F-EA | FEX-201F-AM | FEX-201F-EA |
| Modem Support | Internal (1x Modem) | Internal (1x Modem) |
| Number of Antennas | 3 SMA External | 3 SMA External |
| Power over Ethernet (PoE)Powered | IEEE 802.3af (15.4 W) | IEEE 802.3af (15.4 W) |
| Ethernet Ports | 5 GE RJ45 Ports (WAN + LAN) | 5 GE RJ45 Ports (WAN + LAN) |
| Bluetooth | N/A | Maximum Transmit Power 10 dBm Frequency 2.4 GHz |
| GPS Antenna Port | Yes | Yes |
| Mounting Options | Wall Mount / Desktop | Wall Mount / Desktop |
| Type | Indoor | Indoor |
| Dimensions | ||
| Height x Width x Length (inches) | 1.45 x 5.9 x 5.9 (not including antenna length) |
1.5 x 5.9 x 5.9 (not including antenna length) |
| Height x Width x Length (mm) | 37 x 150 x 150 (not including antenna length) |
38 x 150 x 150 (not including antenna length) |
| Weight | 0.81 lbs (0.37 kg) | 0.81 lbs (0.37 kg) |
| Environment | ||
| Power Required | 12V/3A | 12V/3A |
| Power Consumption (Average) | 6.5 W | 6.5 W |
| Power Consumption (Maximum) | 8.5 W | 8.5 W |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -4°F to 158°F (-20°C to 70°C | -4°F to 158°F (-20°C to 70°C |
| Humidity | 5% to 95% | 5% to 95% |
| Certifications | ||
| FCC | FCC Part 15B, 2.1091* | FCC Part 15B, 2.1091* |
| IC | ICES-003, RSS-102* | ICES-003, RSS-102* |
| CE | EMC 2014/30/EU (EN 55032, EN 55024, EN 55035, EN 61000-3-2/-3; EN 301 489-1/-19, Draft EN 301 489-52) ** RED 2014/53/EU (EN 303 413, EN 301 908- 1/-2/-13, EN 62311) ** LVD 2014/35/EU (EN 62368-1) ** | EMC 2014/30/EU (EN 55032, EN 55035, EN 61000-3-2/-3; EN 301 489-1/-17/-52, Draft EN 301 489-19) ** RED 2014/53/EU (EN 300 328, EN 303 413, EN 301 908-1/-2/- 13, EN 62311) ** LVD 2014/35/EU (EN 62368-1) ** |
| UL | UL/CSA 62368-1 | UL/CSA 62368-1 |
| CB | IEC/EN 60950-1, IEC/EN 62368-1 | IEC/EN 62368-1 |
