Cisco LTE Cisco C1111-8PLTELA ISR 1100 8P Dual GE Router w/ LTE Adv SMS/GPS LATAM & APAC
“Equipment is SD-WAN Ready”
“Software modifications/replacements are customer’s responsibility.”

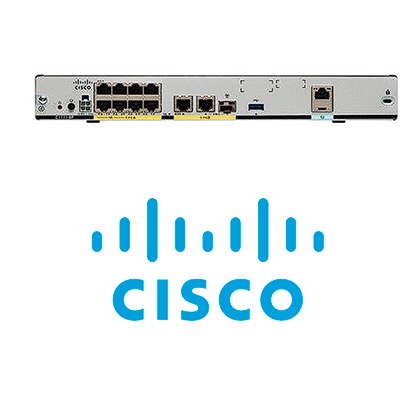

C1111-8PLTELA Overview
Cisco 1100 Series Integrated Services Router (ISRs) delivers Cisco IOS® XE Software, providing WAN, comprehensive security, wired and wireless access in a single, high-performance platform. Cisco 1100 Series ISR is ideal for Small and Medium enterprise branch offices. The C1111-8PLTELA is the ISR 1100 8P Dual GE Router with w/ LTE Adv, SMS/GPS and LATAM & APAC.
Quick Spec
Table 1 shows the quick spec.
Model | C1111-8PLTELA |
GE | 1 |
GE/SFP combo | 1 |
ADSL2/VDSL2+ | N/A |
LTE Advanced (CAT6) | 1 LATAM & APAC |
802.11ac | N/A |
GE | 8 |
PoE | 4 |
PoE+ | 2 |
Integrated USB 3.0 AUX/console | Yes |
Dimensions (H x W x D) | H x W X D = 1.75 x 12.7 x 9.6 in. (44 x 323 x 244 mm) (includes rubber feet) |
Weight with AC PS (w/o modules) | 5.5 Lbs. (2.5 kg) maximum |
Product Details
Table 2 shows the business benefits.
Business need | Features/description |
Lightweight, compact size with low power consumption | ●Can be deployed in many different environments where space, heat dissipation, and low power consumption are critical factors. |
High performance to run concurrent services | ●High performance allows customers to take advantage of broadband network speeds while running secure, concurrent data, voice, video, and wireless services. |
High availability and business continuity | ● Redundant WAN connections for failover protection and load balancing. ● Dynamic failover protocols such as Virtual Router Redundancy Protocol (VRRP; RFC 2338), Hot Standby Router Protocol (HSRP), and Multigroup HSRP (MHSRP). |
Consistent, high application performance levels | ● The router can run multiple services simultaneously with minimal performance degradation. |
Risk mitigation with multilevel security | ● Network perimeter security with integrated application inspection firewall. ● Data privacy through high-speed IP Security (IPsec) Triple Data Encryption Standard (3DES), and Advanced Encryption Standard (AES) encryption. ● High-performance VPNs: DMVPN, FlexVPN, GET VPN, EzVPN ● Cisco Umbrella™ security architecture to provide content filtering via category-based URL classification and blocking, thus helping increase productivity and providing better use of company resources. ● Enforced security policy with OpenDNS. ● Security hardware acceleration. ● Trustworthy systems with Field-Programmable Gate Array (FPGA) and hardware anchor. ● Encrypted traffic analytics maintain integrity of encrypted flow |
Unified control of wired and wireless networks from a common console for streamlined operations | ● Simplifies and centralizes configuration and management of wireless and wireline devices. Supports WLAN services without requiring a wireless LAN controller. ● Supports Mobility Express for WLAN-enabled routers. |
Remote configuration and management to keep local IT staff lean | ● Supports separate console/auxiliary and USB ports. ● Can be configured to work with optional USB token. ● Supports TR-069. |
Performance ● Throughput ● Service reliability | ● Crypto performance up to 250 Mbps for 1100-8P and 150 Mbps for 1100-4P. ● A distributed multicore architecture with the industry’s first internal services plane. ● Remote installation of application-aware services that run identically to their counterparts in dedicated appliances. |
Lower WAN expenditures | ● Cisco Software-Defined WAN (SD-WAN) (over the Cisco Application Policy Infrastructure Controller Enterprise Module [APIC-EM]) support for optimized WAN connection. |
Pay as you grow: IPsec performance upgrade model | ● Router IPsec capacity can be increased with a remote performance-on-demand license upgrade (no hardware upgrade) for exceptional savings andCapEx budget management. |
IT consolidation, space savings, and improved Total Cost of Ownership (TCO) | ● Single converged branch platform integrates routing, switching, security, and performance management capabilities. |
Business continuity and increased resiliency | ● The entire 1100 Series supports Power over Ethernet (PoE) and PoE+ power to endpoints. |
Product Accessories
Licenses
Table 3 shows the licenses for C1111-8PLTELA.
Licenses | Description |
AppX Foundation License for Cisco ISR 1100 8P Series | |
Security License for Cisco ISR 1100 8P Series | |
NPE Security License for Cisco ISR 1100 8P Series | |
Security Foundation License for Cisco ISR 1100 8P Series | |
IPSEC PLUS 200 Mbps License for Cisco ISR 1100 8P Series | |
| HSEC | |
| Performance |
