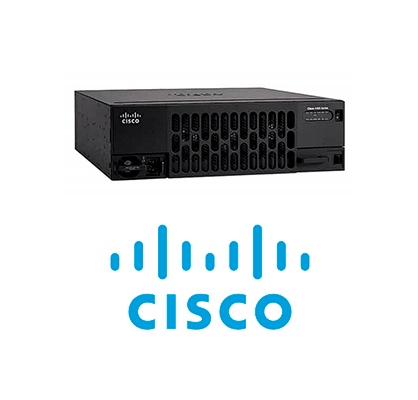

Cisco ISR4461 Chasis Only
ISR4461/K9 Overview
ISR4461/K9 is the Cisco ISR 4461 with 4 onboard GE, 3 NIM slots, 1 ISC slot, 3 SM slots, 8 GB Flash Memory default, 2 GB DRAM default (data plane), 4 GB DRAM default (control plane). The Cisco 4000 Series Integrated Services Routers (ISR) revolutionize WAN communications in the enterprise branch. With new levels of builtin intelligent network capabilities and convergence, the routers specifically address the growing need for application-aware networking in distributed enterprise sites. These locations tend to have lean IT resources. But they often also have a growing need for direct communication with both private data centers and public clouds across diverse links, including Multiprotocol Label Switching (MPLS) VPNs and the Internet.
Quick Spec
Table 1 shows the quick spec.
Technical Specifications | ISR4461/K9 |
Aggregate Throughput | 1.5Gbps |
Total onboard WAN or LAN 10/100/1000 ports | 4 |
Total onboard WAN or LAN 10Gbps ports | 2 |
RJ-45-based ports | 4 |
SFP-based ports | 4 |
Enhanced service-module slots | 3 |
Doublewide service-module slots | 2 |
NIM slots | 3 |
OIR (all I/O modules) | Yes |
Onboard ISC slot | 1 |
Dimensions (H x W x D) | 3.5 x 17.25 x 18.5 in (88.9 x 438.15 x 469.9 mm) |
Rack height | 2 Rack Units (2RU) |
The Modules, Cards, Licenses
Table 2 shows the recommended products.
Model | Description |
8G DRAM (1 DIMM) for Cisco ISR 4460 | |
16G DRAM (1 DIMM) for Cisco ISR 4461 | |
32G DRAM (1 DIMM) for Cisco ISR 4460 | |
8G to 16G Flash Memory Upgrade for Cisco ISR 4400 | |
8G to 32G Flash Memory Upgrade for Cisco ISR 4460 | |
Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module | |
2 port Multi-flex Trunk Voice/Clear-channel Data T1/E1 Module | |
Voice/WAN Module (4-port T1/E1) | |
Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module | |
Cisco Multiflex Trunk Voice and WAN network interface module | |
Cisco Multiflex Trunk Voice and WAN network interface module | |
U.S. Export Restriction Compliance license for 4400 series | |
| HSEC | |
| Performance |
