Cisco ISR4431 Chasis Only

https://customerportal.orchest.net/web/image/product.template/38/image_1920?unique=c9833c0

690.00 690.0 USD per month

500.00 500.0 USD One-Time Delivery and Installation Fee

225.00

Not Available For Sale

  • Term
  • license

This combination does not exist.

ISR4431 Overview

Cisco 4431 Integrated Services Router, which supports 3 Network Interface Modules (NIM) slots, delivers 500 Mbps to 1 Gbps aggregate throughput. This router also supports two kinds of DDRM, data plane and control/services plane, which make administrator easy to manage the router.

Quick Specs

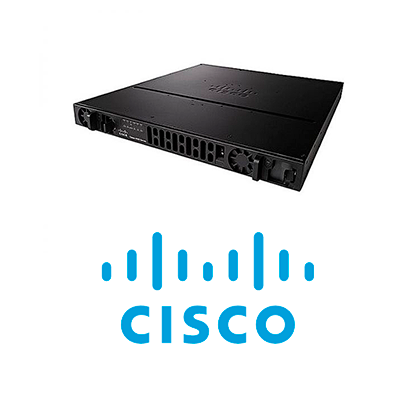

Figure 1 shows the appearance of Cisco ISR4431



Table 1 shows the Quick Specs.

Product Code

Cisco ISR4431/K9

Aggregate Throughput

500 Mbps to 1 Gbps

Total onboard WAN or LAN 10/100/1000 ports

4

RJ-45-based ports

4

SFP-based ports

4

Enhanced service-module (SM-X) slot

0

NIM (Network Interface Modules) slots

3

Onboard ISC slot

1

DDRM (data plane)

2 GB (default) / 2 GB (maximum)

DDRM (control/services plane)

4 GB (default) / 16 GB (maximum)

Flash Memory

8 GB (default) / 32 GB (maximum)

Power-supply options

Internal: AC, DC, and PoE

Rack height

1 RU

Dimensions (H x W x D)

43.9 x 438.15 x 507.2 mm

Package Weight

20.88 Kg


Note:

Power supply unit

Router power On/Off switch

LEDs

Optional power supply unit

·LEDs include 12 indicators.

Table 2 shows the LED descriptions.

LEDs

Represents

Color

Description

PSU

Power Supply Unit (P0 and P1) Status

Green

PSU is on and is providing power.

Amber

PSU is on but with errors or in a failure condition.

Off

Power supply is turned off.

GE POE

Internal PoE Daughter Card Status

Green

PSU is installed and providing power

Amber

PSU is installed but in a failure condition.

Off

PSU is off.

FLASH

System Flash Status

Blinking Green

Compact flash/eUSB flash is present and currently being accessed.

TEMP

Temperature Status

Solid green

All temperature sensors in the system are within acceptable range.

Amber

One or more temperature sensors in the system are outside the acceptable range.

Off

Temperature is not being monitored.

PWR

System Power

Green

System power is on and functioning correctly.

Green blinking

System power is in the process of shutting down.

Amber

System power is up, but low level initialization failed.

Amber blinking

System power is up, but the system failed to come out of reset.

Off

System power is off.

POE BOOST

Power Over Ethernet Boost Mode

Green

Two PoE power supplies are installed and operating in boost mode.

Off

This can mean one of the following:

·No PoE PSU installed.

·One PoE PSU installed.

·Two PoE PSUs installed and operating in redundant mode.

ISC

ISC Slot Status

Green

PVDM4 is present and enabled.

Amber

Initialized with error.

Off

Not present.

FAN

Fan Status

Green

All fans are operating.

Amber

One fan has stopped working.

Blinking Amber

Two or more fans have stopped working, or the fan tray has been removed.

Off

Fans are not being monitored.

STAT

System Status

Solid green

System operating normally.

Blinking amber

BIOS/Rommon is booting.

Amber

BIOS/Rommon has completed booting, and system is at Rommon prompt or booting platform software.

Off

System is not out of reset or BIOS image is not loadable.


The Modules, Cards, Licenses & Accessories

Cisco ISR4431 is one of the Cisco 4000 series routers, which support new modules & cards slots, such as NIM, ISC, etc. Besides, Cisco ISR4431/K9 can upgrade by licenses.

Table 3 shows some recommended modules, cards, licenses and several cables.

Items

Models

Descriptions

Console and Auxillary Cables

CAB-AUX-RJ45

Cisco CAB-AUX-RJ45 Auxiliary Cable 8ft with RJ45 and DB25M

CAB-ETH-S-RJ45

Cisco Router Cable CAB-ETH-S-RJ45

CAB-CONSOLE-RJ45

Cisco CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F

CAB-CONSOLE-USB

Cisco CAB-CONSOLE-USB Console Cable 6 ft with USB Type A and mini-B

Licenses

L-SL-44-APP-K9=

Cisco ISR 4431/4451 AppX license L-SL-44-APP-K9= with WAAS/vWAAS 1300/2500 conns RTU

Network Interface Modules

NIM-1MFT-T1/E1

Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module

NIM-2CE1T1-PRI

Cisco Multiflex Trunk Voice and WAN network interface module

NIM-4E/M

Analog voice network interface card (ear and mouth)

NIM-2FXS

Cisco Analog voice network interface card NIM-2FXS

NIM-2FXS/4FXO

Cisco Analog voice network interface card NIM-2FXS/4FXO

NIM-8MFT-T1/E1

Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module

SFPs for On-Board GE Ports

GLC-SX-MMD

Cisco GLC-SX-MMD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM

GLC-LH-SMD

Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM

GLC-ZX-SMD

Cisco GLC-ZX-SMD 1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM

Download Datesheet(PDF)
